CNC Plasma Cut Valve Support Plates for Fuel Separator Skids

When you're building out a fuel separator skid, the components handling the load of large industrial valves need to fit right the first time. There's no room for sloppy cuts or plates that almost work. That's exactly why we cut these valve support plates using CNC plasma - tight tolerances, clean edges, and a geometry that actually matches what the skid needs.

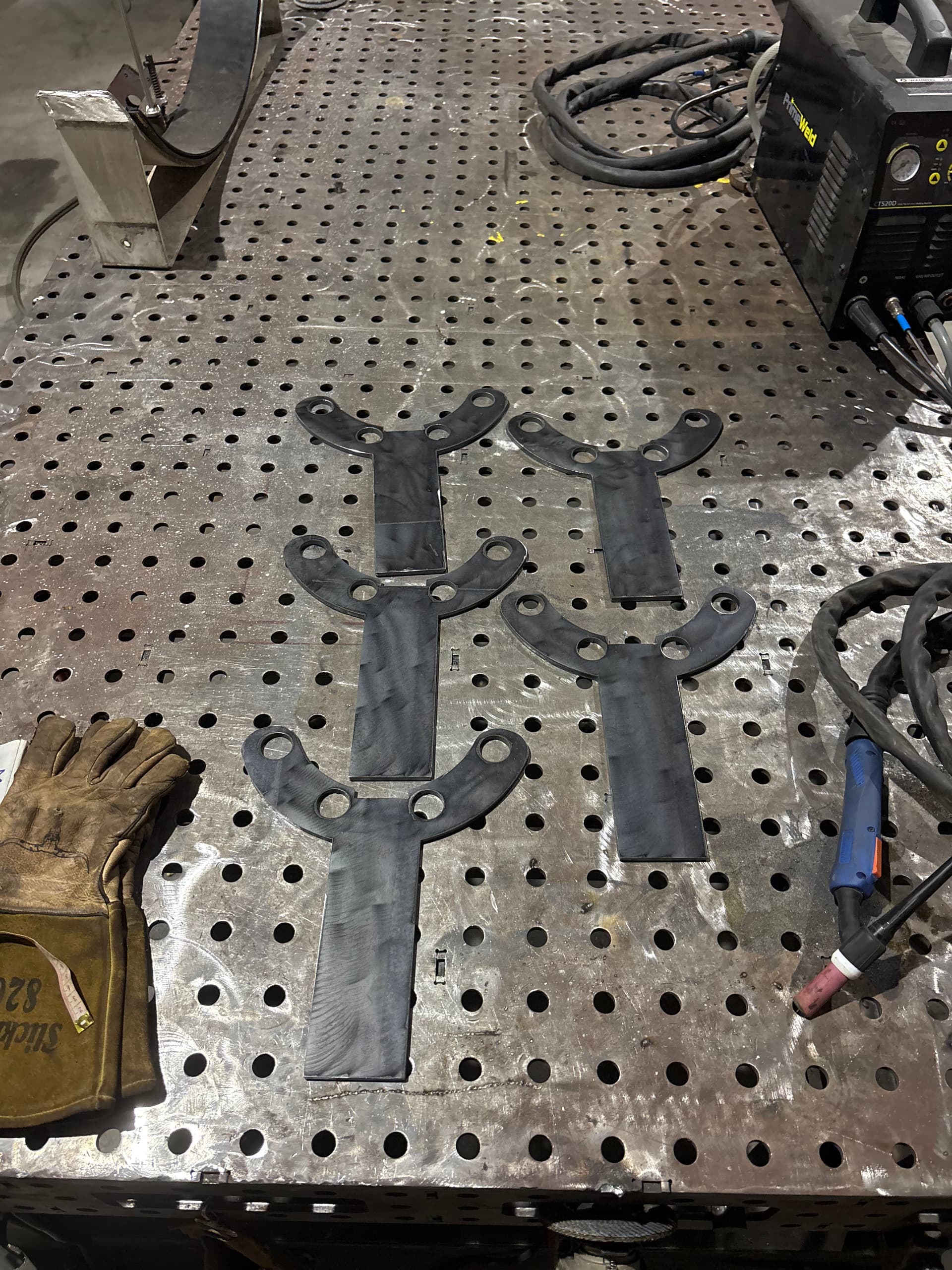

The plates themselves are designed to cradle and support heavy flanged valves along the pipe runs on the skid. Each one has a notched saddle profile cut at the top to cradle the valve body, with bolt holes positioned to keep everything locked in place. Nothing improvised. Nothing forced. Just parts that were engineered to fit before they ever hit the welding table.

This kind of custom fabrication work is where off-the-shelf hardware just doesn't cut it - literally. Stock brackets and generic supports rarely match the exact valve size, height, or spacing a specific skid layout demands. When we cut these from plate steel in-house using CNC plasma, we control every dimension. That means less time fitting and adjusting on the floor, and more confidence that the finished assembly is solid.

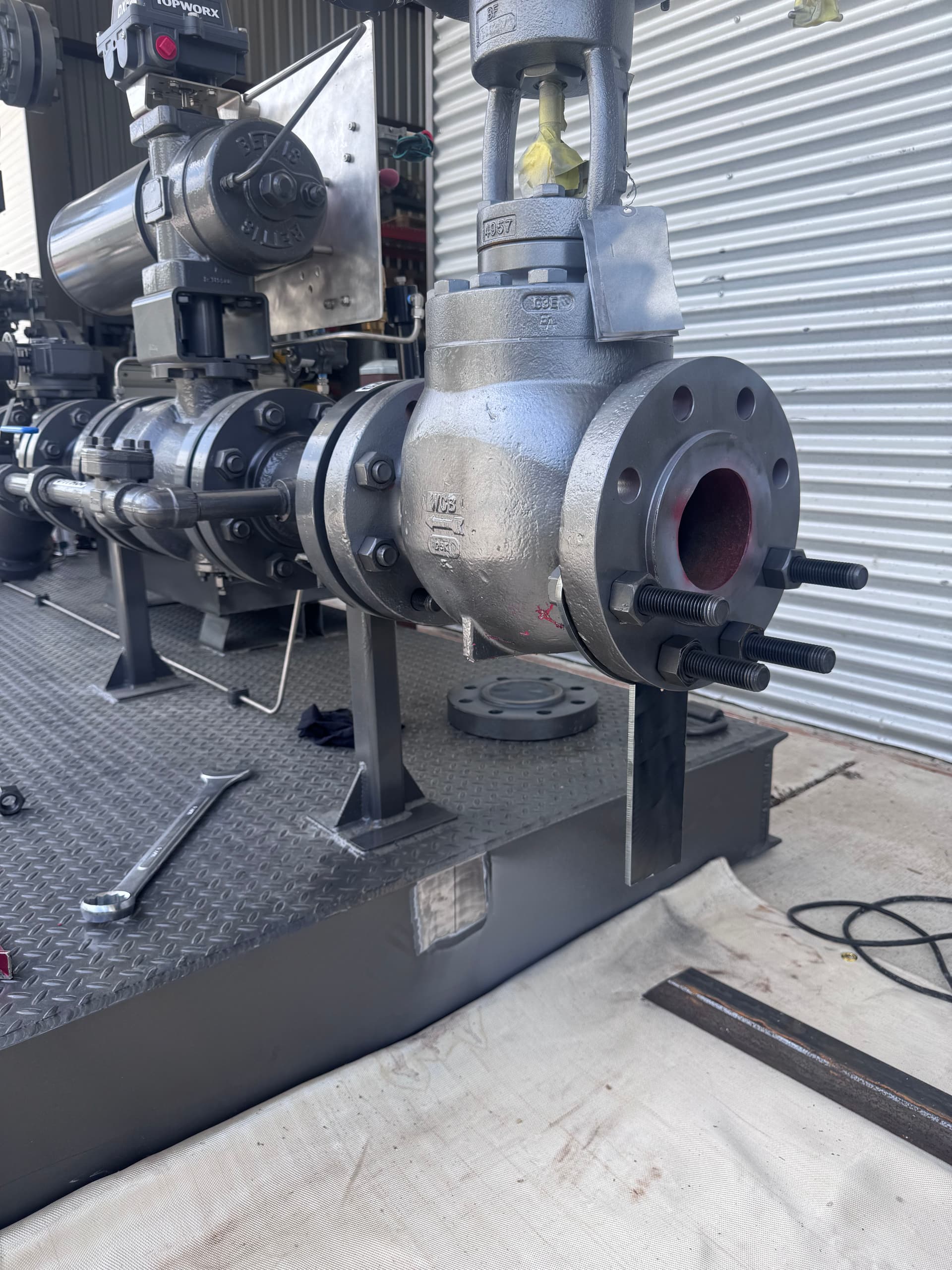

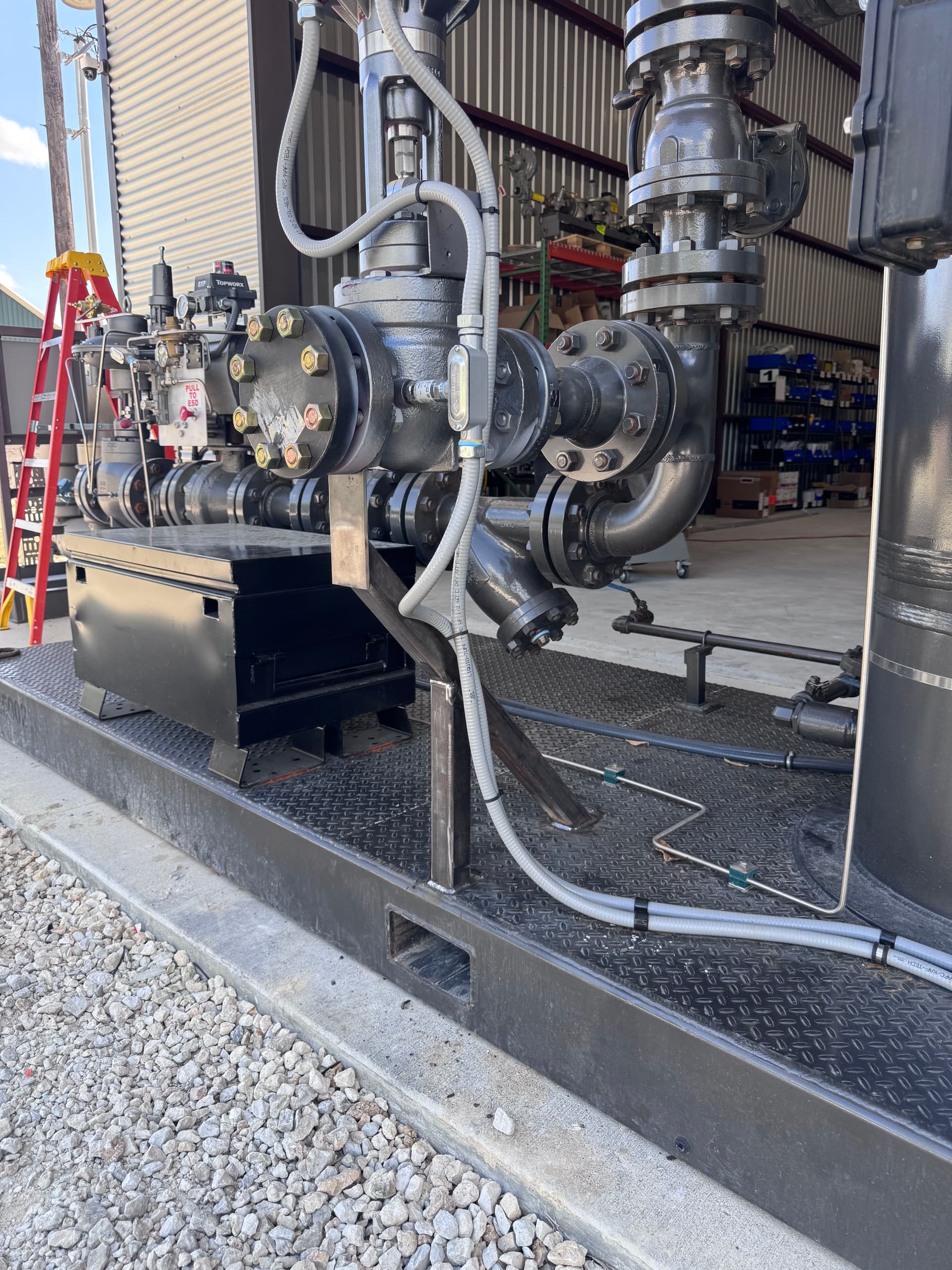

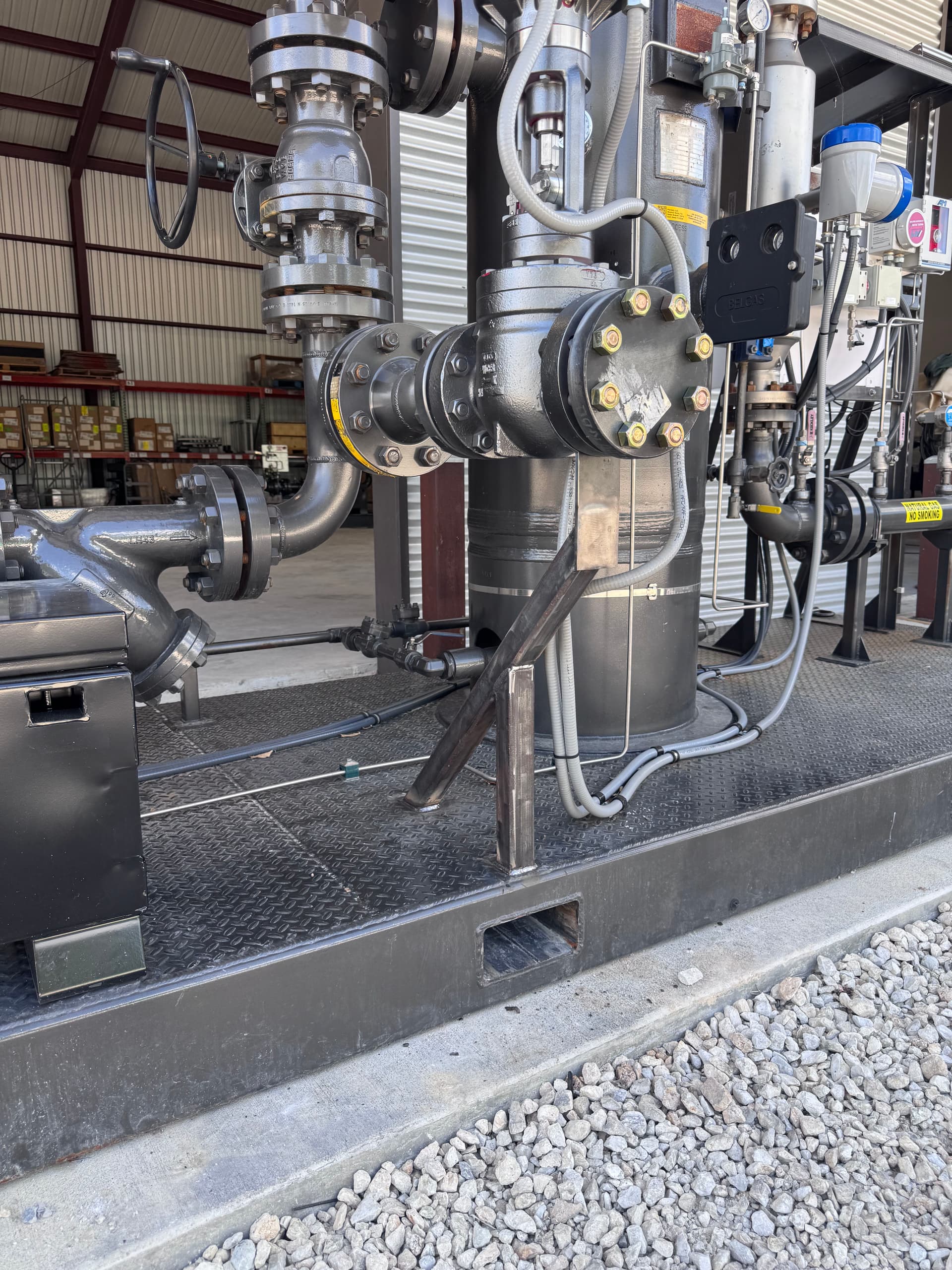

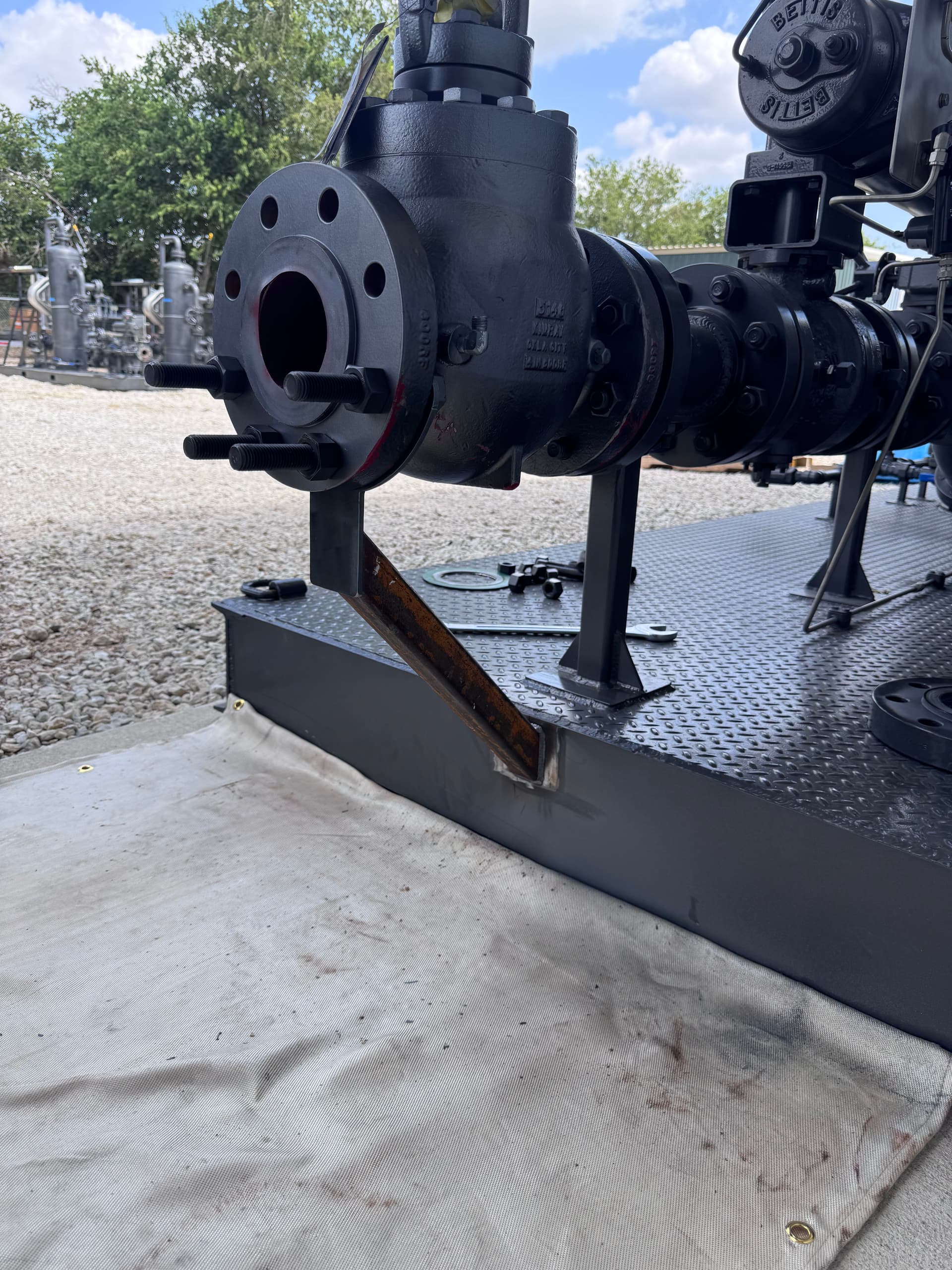

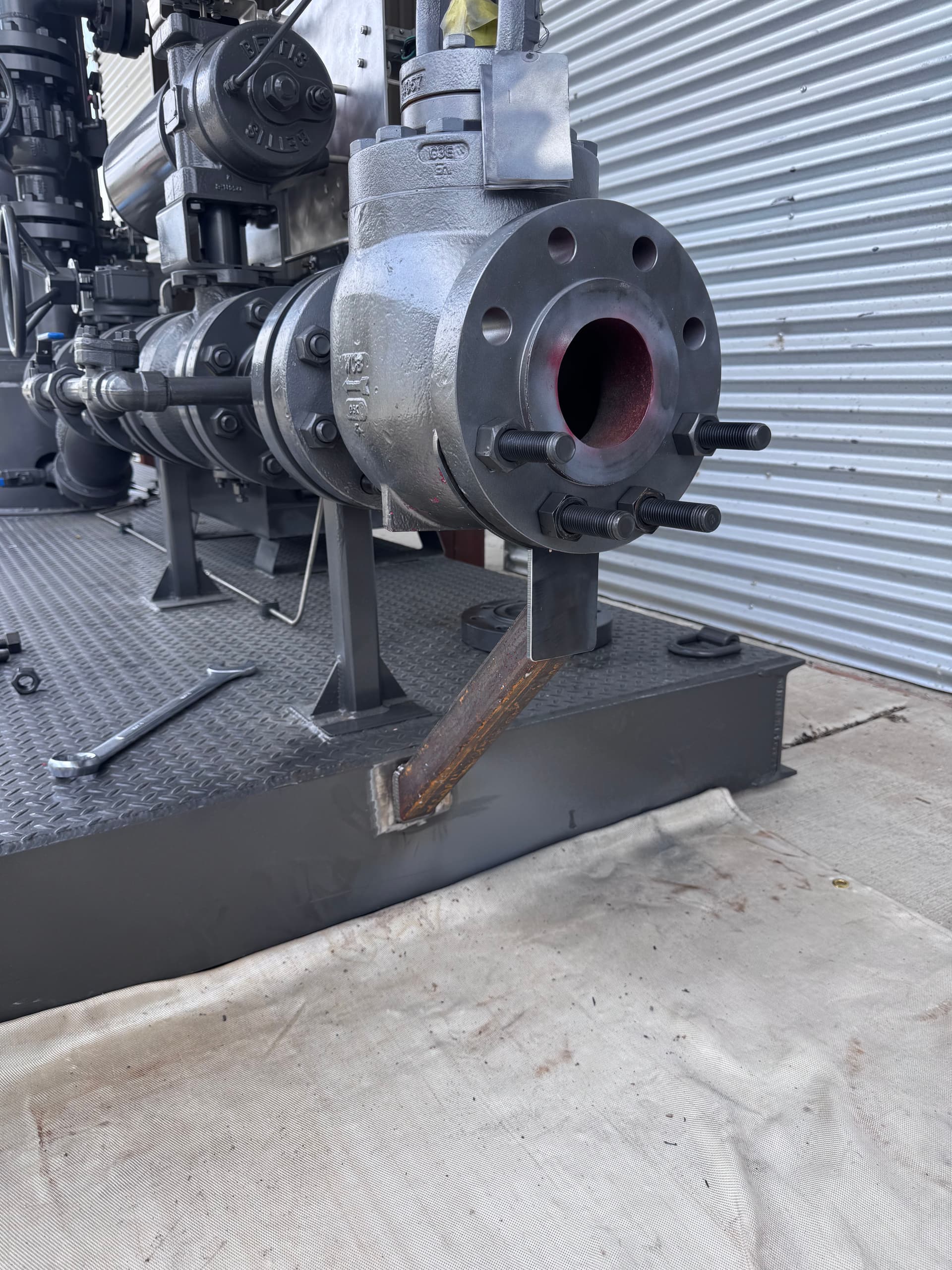

The skid itself shows what we're working toward - a dense, complex arrangement of large flanged valves, actuators, and interconnected pipe all sitting on a diamond plate deck. Supports like these are doing real work, holding heavy valve assemblies steady under pressure and vibration. Getting that foundation right from the start is what keeps the whole system reliable in the field.

Clean fabrication isn't just about looks. It's about building things that hold up when the job is done and the skid is running. That's the standard we hold our custom fabrication work to, whether it's a single bracket or a full set of structural components for a complex skid build.
